Triangle (ternary) dominance plot — plot

Creates a triangular (ternary) scatter plot for **three** numeric variables Each point is coloured by the variable with the largest value and can be filtered by (i) Entropy score ranging from (0 to 1.585) and (ii) overall score

The plot is useful for visualising “winner-takes-all” behaviour in three-way comparisons, e.g. gene expression in *A*, *B*, *C* conditions.

Usage

plot_triangle(
  x,
  column_name = NULL,
  entropyrange = c(0, Inf),
  maxvaluerange = c(0, Inf),
  col = c("darkred", "darkgreen", "darkblue"),
  background_col = "whitesmoke",
  output_table = TRUE,
  plotAll = TRUE,
  cex = 1,
  pch = 16,
  assay_name = NULL,
  label = TRUE,
  push_text = 1
)

Arguments

x: A numeric data.frame/matrix **or** a SummarizedExperiment.
column_name: Character. Names (or indices) of the three columns to visualise. If NULL, the first three numeric columns are used.
entropyrange: Numeric. Keep points whose entropy lies inside this interval. Default is c(0,Inf)
maxvaluerange: Numeric. Keep points whose values lies inside this interval. Default is c(0,Inf)
col: Character. Colors for each variable.
background_col: Character. Color for the observations outside entropyrange and maxvaluerange
output_table: Logical. If TRUE returns the processed data frame.
plotAll: Logical. If TRUE, filtered points are shown in background_col; if FALSE, they are omitted.
cex, pch: Base-graphics point size / symbol.
assay_name: (SummarizedExperiment only) Which assay to use. Default: the first assay.
label: Logical. If TRUE, label the vertices of the triangle
push_text: Numeric. Expands or contracts text label positions.

Value

If output_table = TRUE, a data.frame with the original three columns plus:

comx, comy — Cartesian coordinates in the triangle;
color — final plotting colour;
entropy — Entropy scores for each gene;
max_counts — Maximum score across variables

Details

The function expects three numeric columns. If the experiment has more than three columns, the name of the columns of interest can be specified by using the parameter column_name. If x is a SummarizedExperiment, it extracts the indicated assay and extracts the columns of interest

It also uses: - centmass() for computing comx and comy. - entropy() for computing Shannon entropy, stored in the entropy column. Between three variables, entropy rangeS between 0 and 1.585.

The ternary vertices are fixed at \(( \sin(0), \cos(0) )\), \(( \sin(2\pi/3), \cos(2\pi/3) )\) and \(( \sin(4\pi/3), \cos(4\pi/3) )\).

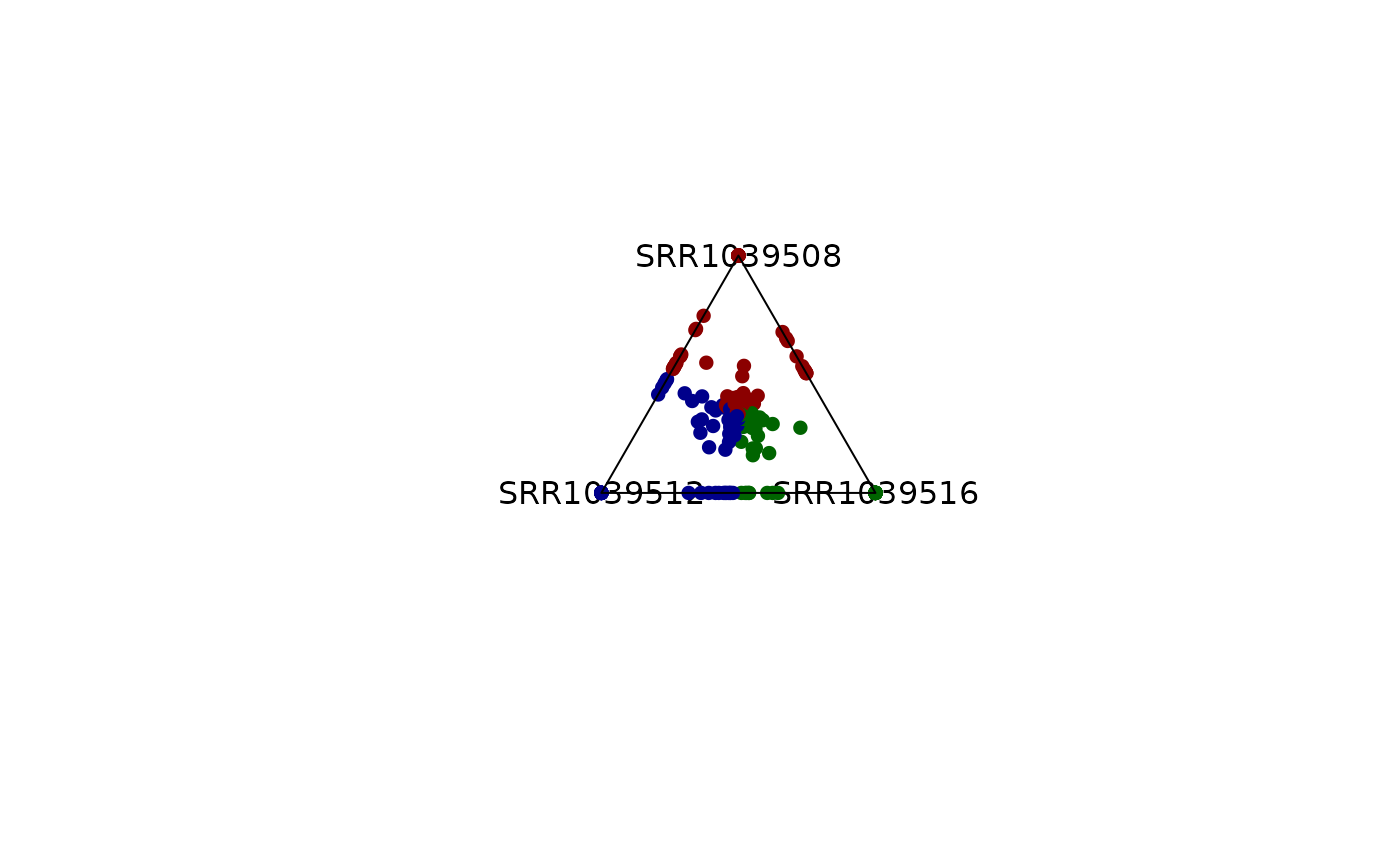

Examples

library(SummarizedExperiment)
library(airway)
data('airway')
se <- airway

# Only use a random subset of 1000 rows
set.seed(123)
idx <- sample(seq_len(nrow(se)), size = min(1000, nrow(se)))
se <- se[idx, ]

## Normalize the data first using tpm_normalization
rowData(se)$gene_length <- rowData(se)$gene_seq_end -
                           rowData(se)$gene_seq_start

se <- tpm_normalization(se, log_trans = TRUE, new_assay_name = 'tpm_norm')

# -------------------------------
# 1) Using a data.frame
# -------------------------------

df <- assay(se, 'tpm_norm') |> as.data.frame()


# Choose three columns of interest, in this case 'SRR1039508', 'SRR1039516'
# and 'SRR1039512'

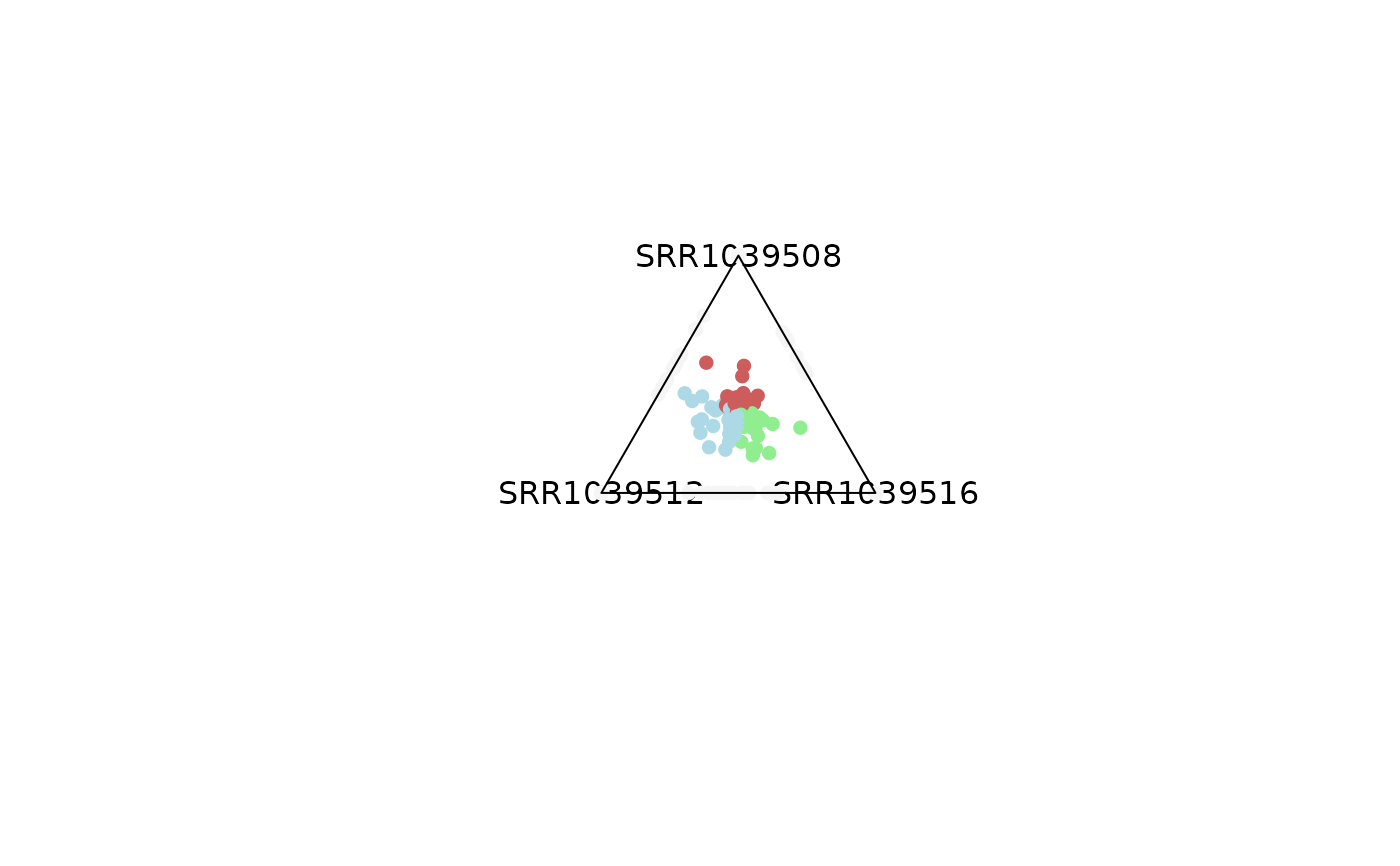

# Default Behaviour

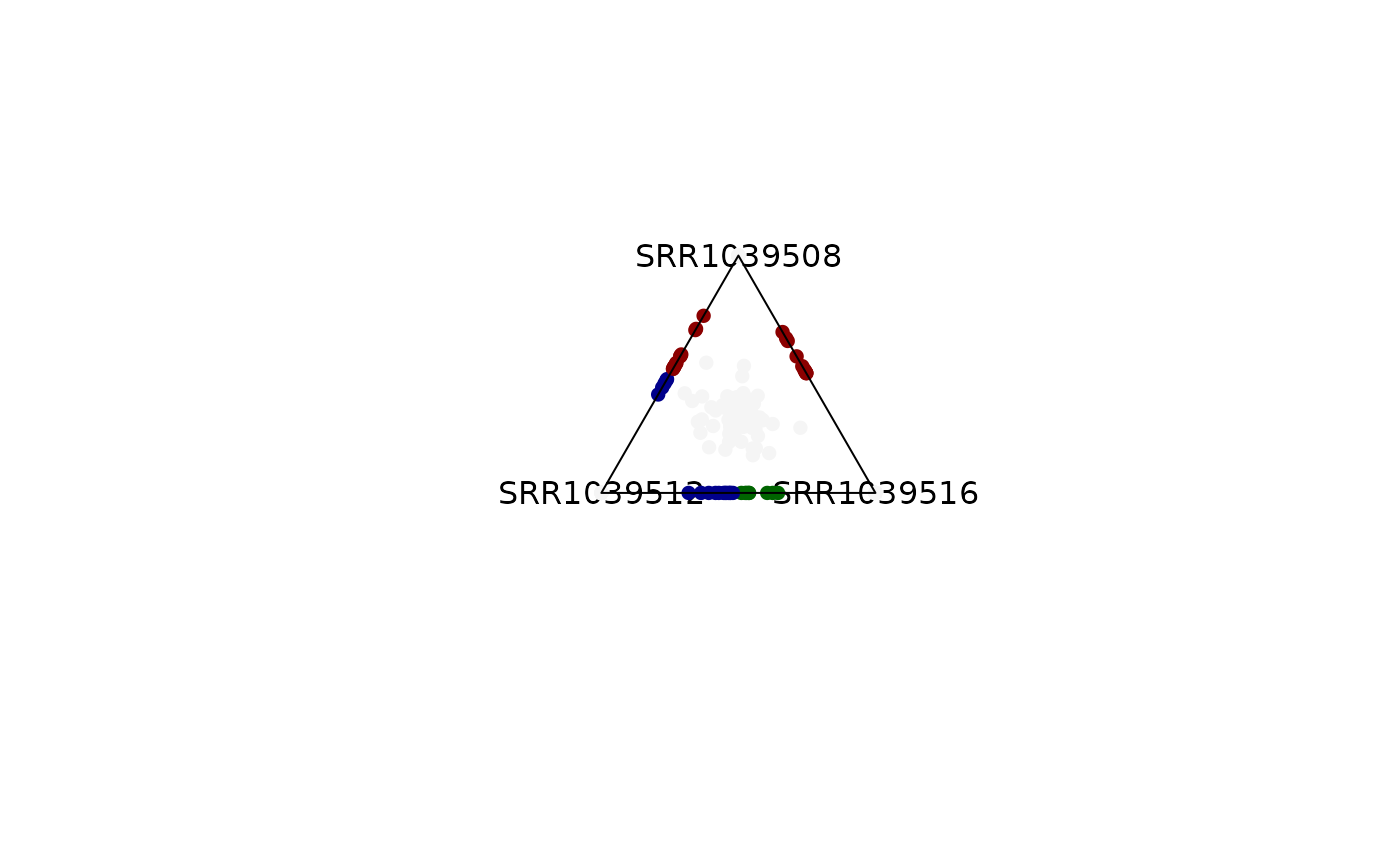

plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE)

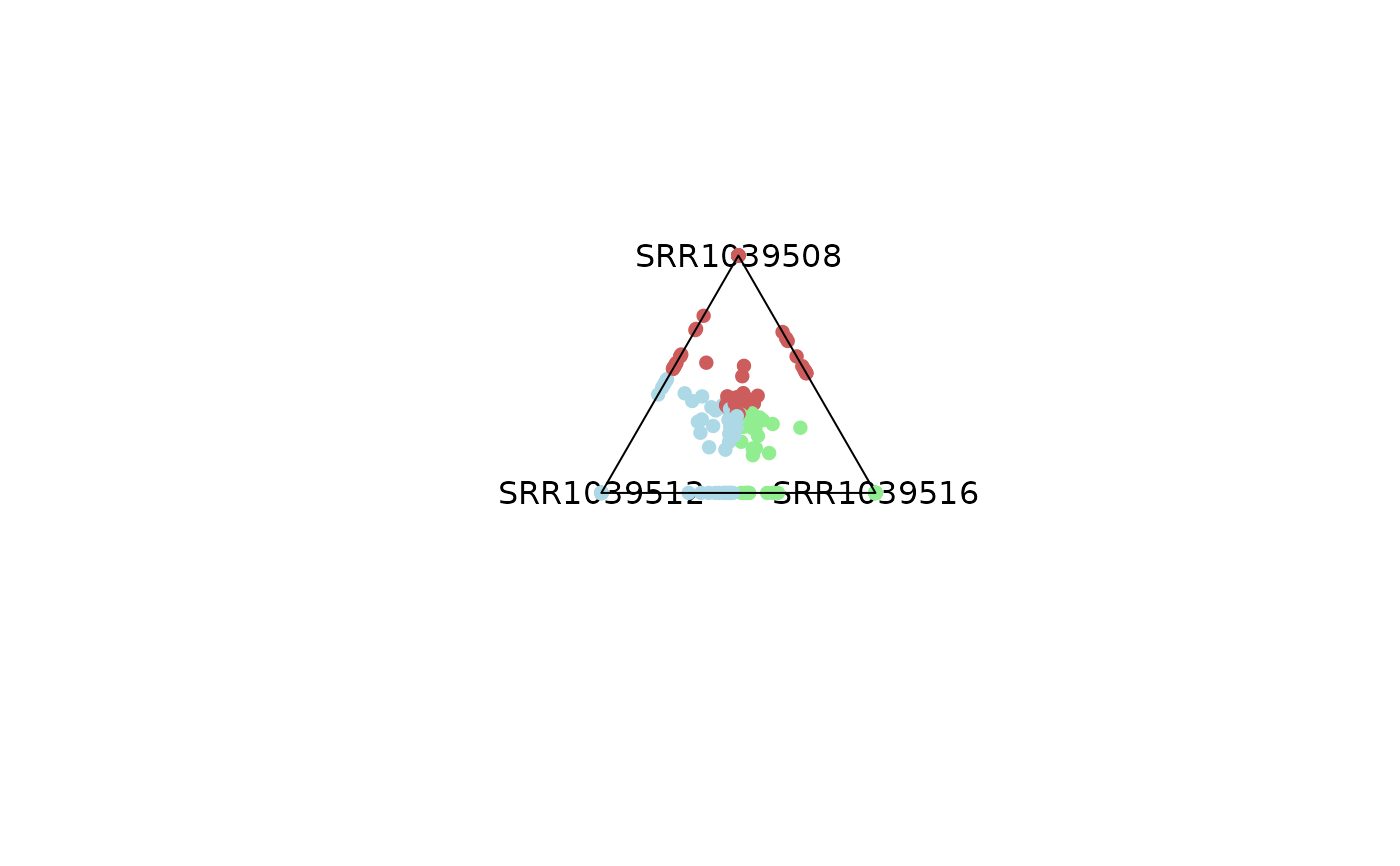

# Colors can be modified
plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'))


# Emphasis can be applied to highly dominant variables by controling
# entropy parameter,
# values outside of that range will be colored smokewhite.

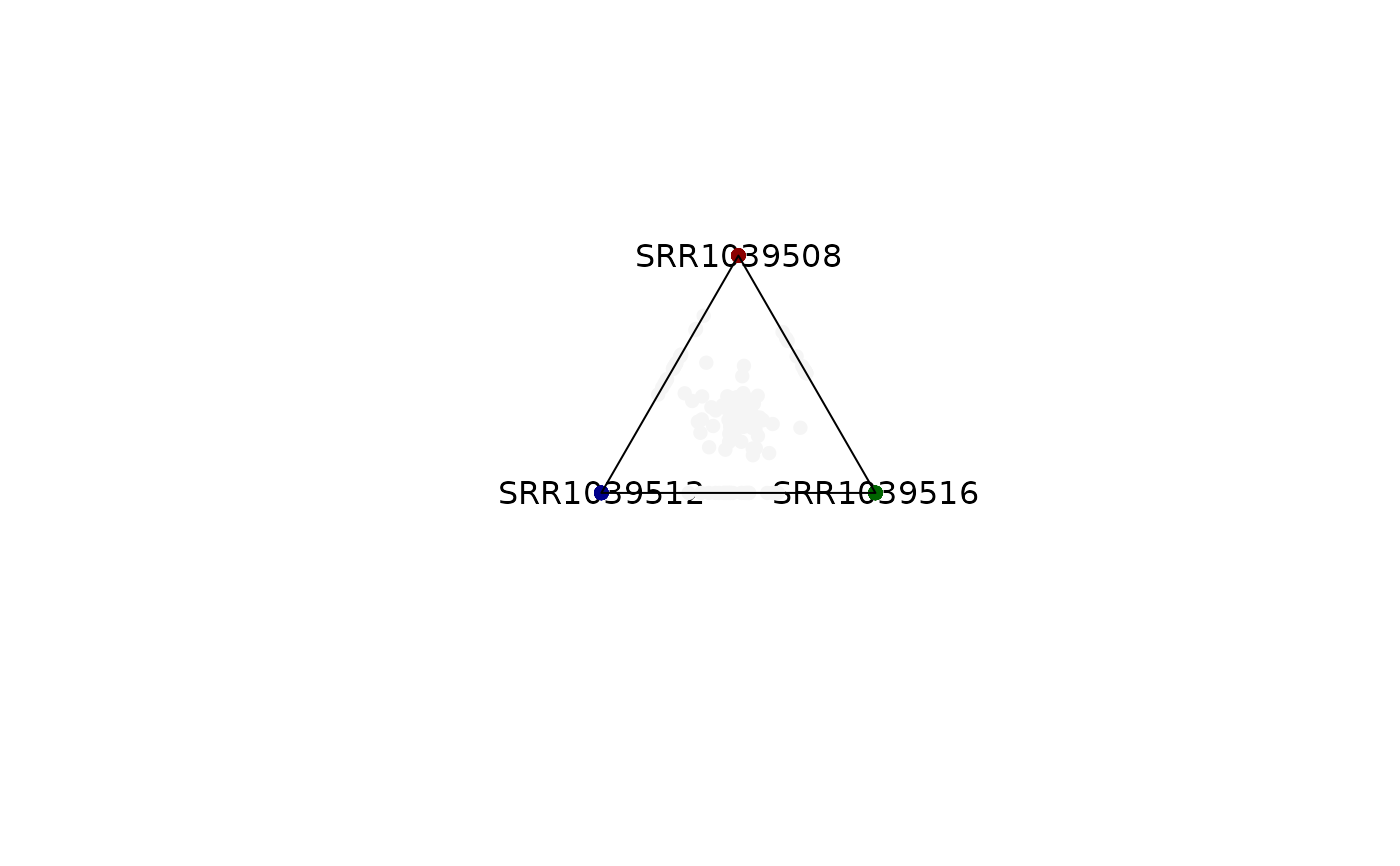

plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(0, 0.1))

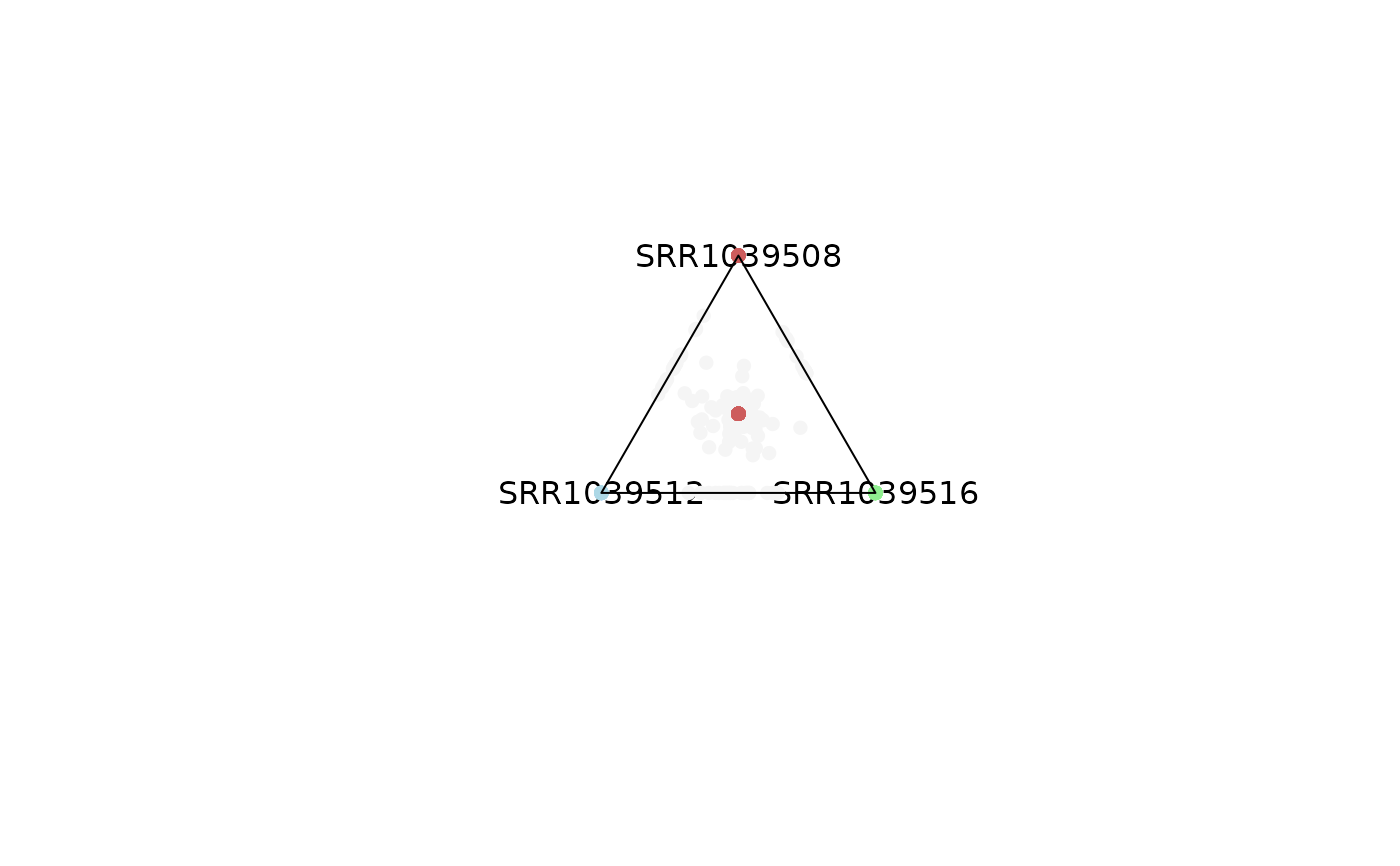

# Points in the center are a reflection of genes with expression levels = 0.
# This can be modified by adjusting the maxvalue range

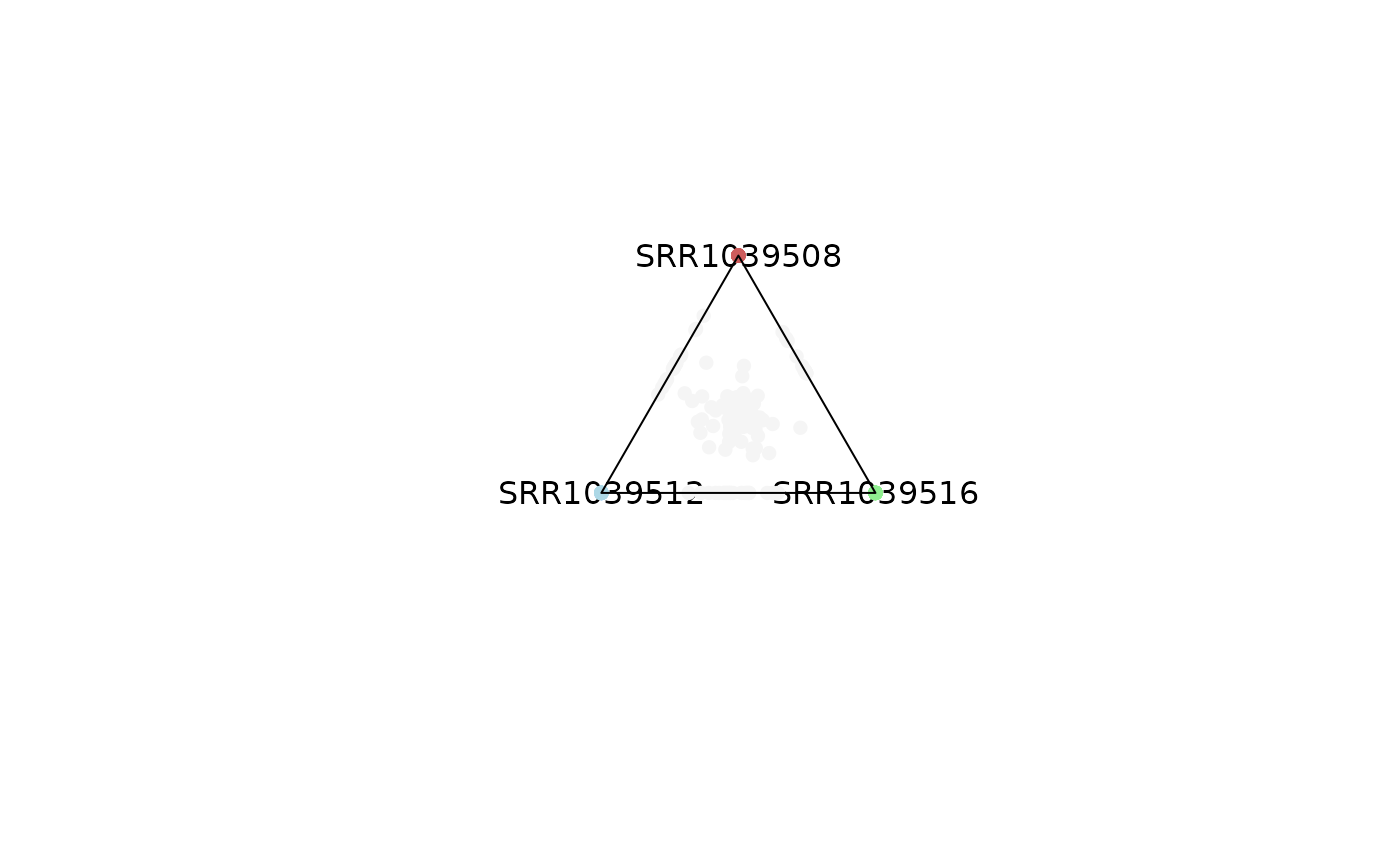

plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(0, 0.1),
              maxvaluerange = c(0.1, Inf))


# By controling entropy range, you can observe different types of genes.
# Values closer to 0 represent dominance and closer to 1.6 shareness.

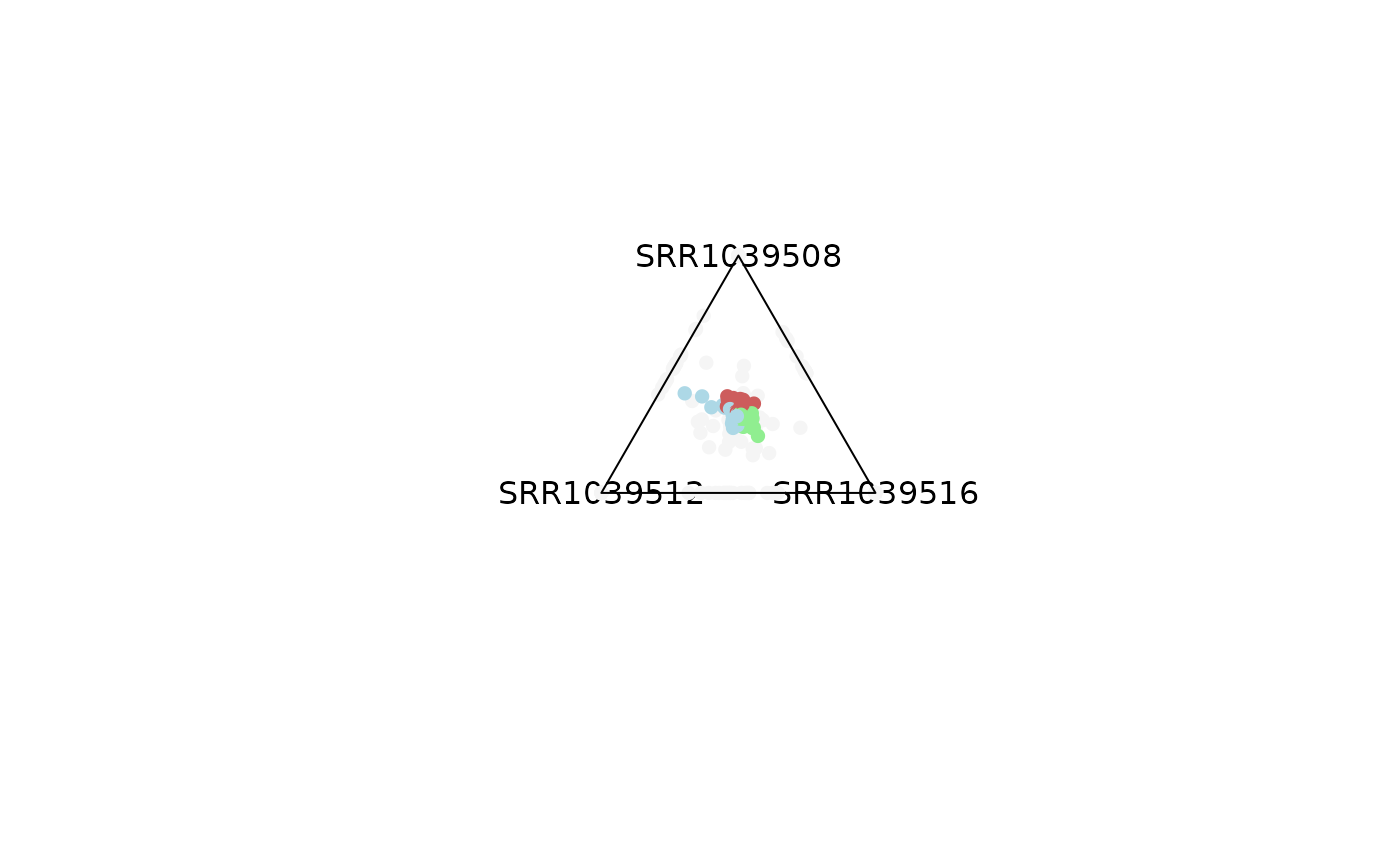

plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(0, 0.4),
              maxvaluerange = c(0.1, Inf))

plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(0.4, 1.3),
              maxvaluerange = c(0.1, Inf))

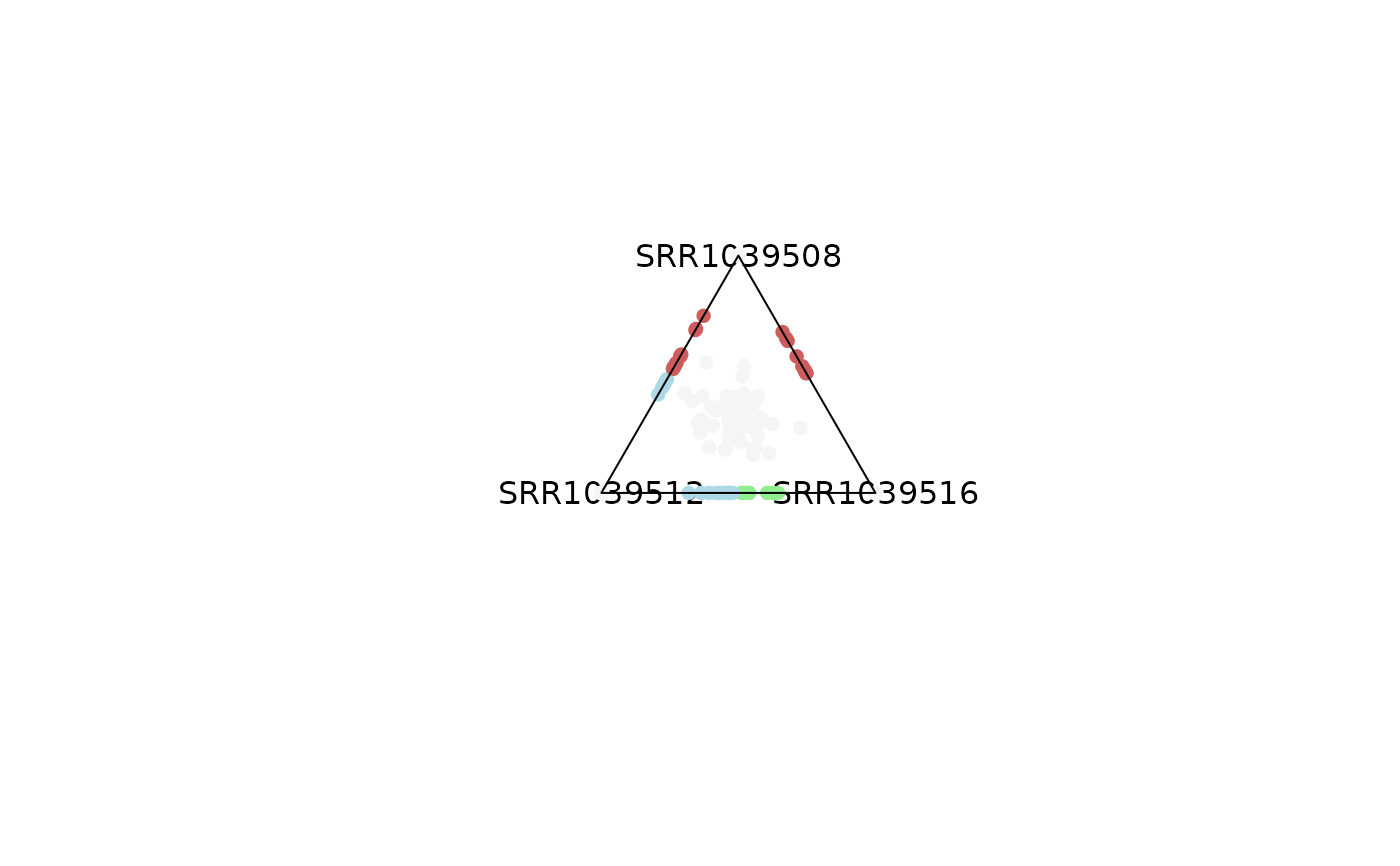

plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(1.3, Inf),
              maxvaluerange = c(0.1, Inf))

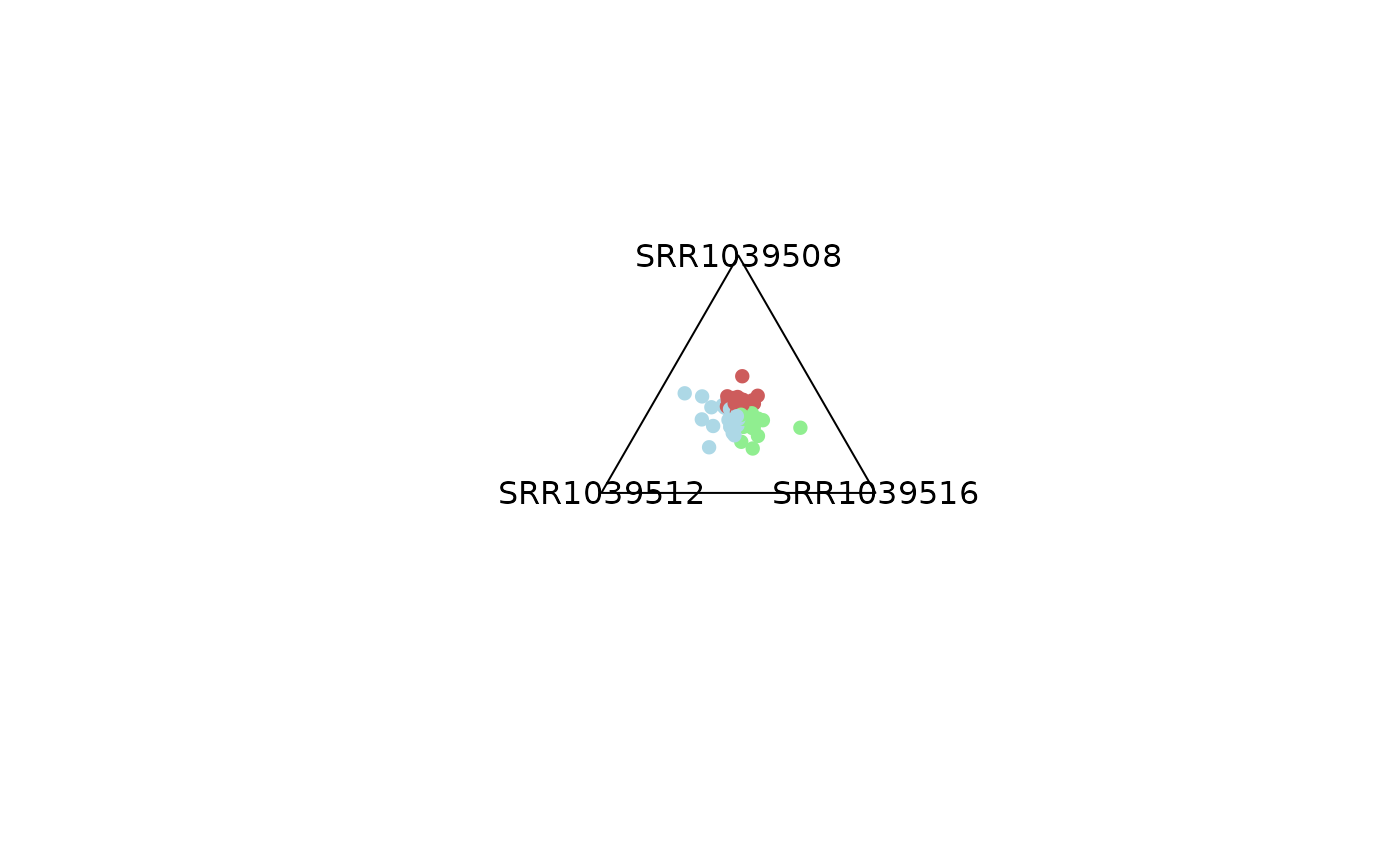

# Same analysis can be performed by filtering out genes with low expression
# values

plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(1.2, Inf),
              maxvaluerange = c(2, Inf))


plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(1.2, Inf),
              maxvaluerange = c(5, Inf))


plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(1.2, Inf),
              maxvaluerange = c(10, Inf))


# Background points can be removed
plot_triangle(x = df,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('indianred', 'lightgreen', 'lightblue'),
              entropyrange = c(1.2, Inf),
              maxvaluerange = c(2, Inf),
              plotAll = FALSE)

# -------------------------------
# 1) Using a SummarizedExperiment
# -------------------------------


plot_triangle(x = se,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('darkred', 'darkgreen', 'darkblue'),
              entropyrange = c(0, 0.4),
              maxvaluerange = c(0.1, Inf),
              assay_name = 'tpm_norm')


plot_triangle(x = se,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('darkred', 'darkgreen', 'darkblue'),
              entropyrange = c(0.4, 1.3),
              maxvaluerange = c(0.1, Inf),
              assay_name = 'tpm_norm')


plot_triangle(x = se,
              column_name = c("SRR1039508", "SRR1039516", 'SRR1039512'),
              output_table = FALSE,
              col = c('darkred', 'darkgreen', 'darkblue'),
              entropyrange = c(1.3, Inf),
              maxvaluerange = c(0.1, Inf),
              assay_name = 'tpm_norm')



### Obtaining the DF output for the analysis

object = plot_triangle(x = se,
                       column_name = c("SRR1039508", "SRR1039516",
                       'SRR1039512'),
                       output_table = TRUE,
                       col = c('darkred', 'darkgreen', 'darkblue'),
                       entropyrange = c(1.3, Inf),
                       maxvaluerange = c(0.1, Inf),
                       assay_name = 'tpm_norm')

head(object)
#>                 max_counts          comx        comy         a         b
#> ENSG00000260166   0.000000  0.0000000000 0.000000000 0.0000000 0.0000000
#> ENSG00000266931   0.000000  0.0000000000 0.000000000 0.0000000 0.0000000
#> ENSG00000104774  10.691031 -0.0009644106 0.004970639 0.3366471 0.3311197
#> ENSG00000267583   0.000000  0.0000000000 0.000000000 0.0000000 0.0000000
#> ENSG00000227581   4.845949  0.0000000000 1.000000000 1.0000000 0.0000000
#> ENSG00000227317   0.000000  0.0000000000 0.000000000 0.0000000 0.0000000
#>                         c  Entropy      color
#> ENSG00000260166 0.0000000 0.000000 whitesmoke
#> ENSG00000266931 0.0000000 0.000000 whitesmoke
#> ENSG00000104774 0.3322333 1.584926    darkred
#> ENSG00000267583 0.0000000 0.000000 whitesmoke
#> ENSG00000227581 0.0000000 0.000000 whitesmoke
#> ENSG00000227317 0.0000000 0.000000 whitesmoke
